Download#

Official project:

https://github.com/multiOTP/multiOTPCredentialProvider/releases/tag/5.10.2.2

China mirror:

http://oss-huating-1.bytesycn.cn/files/zip/multiOTPCredentialProvider-5.10.2.2.zip

What Is TOTP?#

TOTP (Time-based One-Time Password) is a time-based one-time password algorithm.

It combines a shared secret with the current time, typically changing every 30 seconds, to generate a six-digit one-time code.

Even if an attacker obtains the Windows password, they cannot complete the remote login without the code on the user’s phone.

Compared with password-only login, this helps defend against:

• Password exposure
• Brute-force attacks
• Credential stuffing
• Weak-password risks

Recommended TOTP Apps#

The following authenticators are recommended:

1. Tencent Authenticator (recommended)
2. Google Authenticator
3. Microsoft Authenticator
4. 2FAS Authenticator

The first two options are recommended.

Note

Google Authenticator may be unavailable for download in some regions.

Microsoft Authenticator does not make key export and migration especially convenient; changing phones may require reconfiguration.

⚠️ Read Before Installing#

After installation and a system restart, two-factor verification will be enabled for RDP immediately.

Therefore, make sure the server has at least one local access method:

• VMware Console
• Hyper-V Console
• VNC
• iDRAC / iLO / IPMI
• A physical monitor

Do not install this directly on a server whose only access method is RDP.

If token configuration is incomplete, you will be unable to log in through RDP.

Installation Steps#

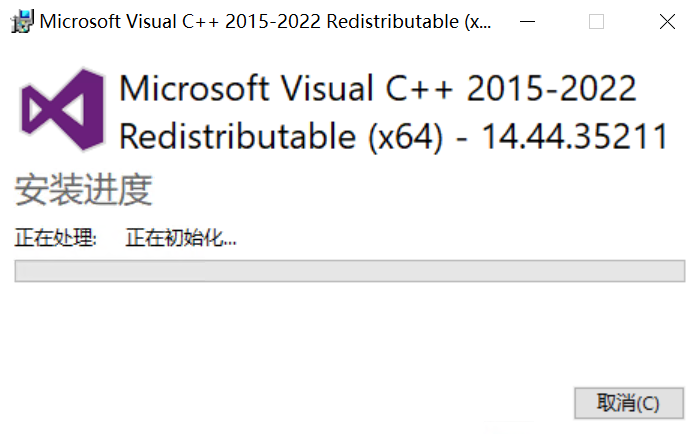

1. Install Visual C++ Runtime#

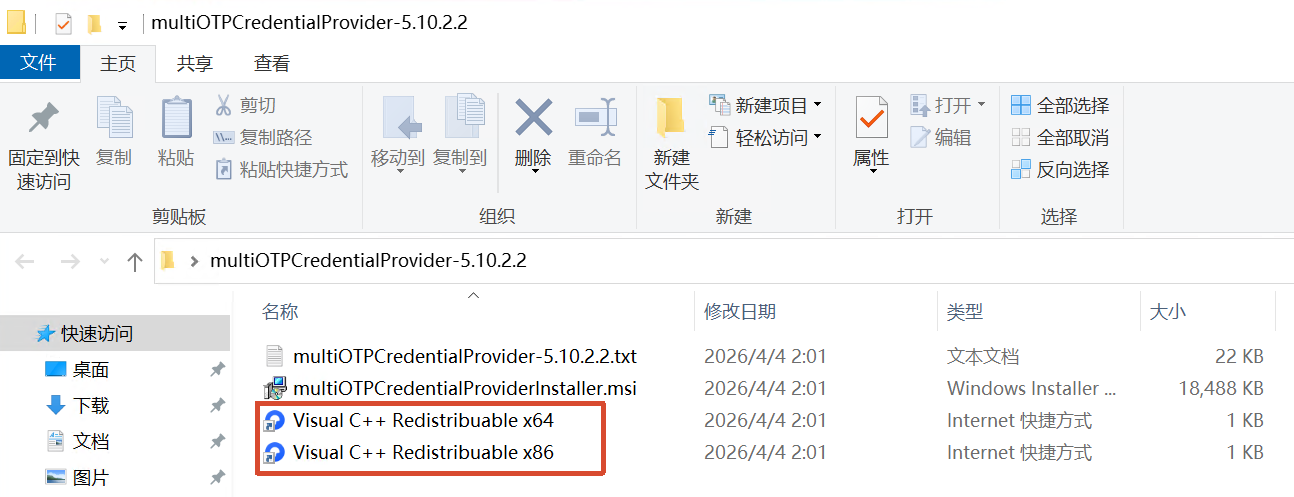

Install the VC++ runtime first.

Choose the version that matches your system.

---

2. Install multiOTP Credential Provider#

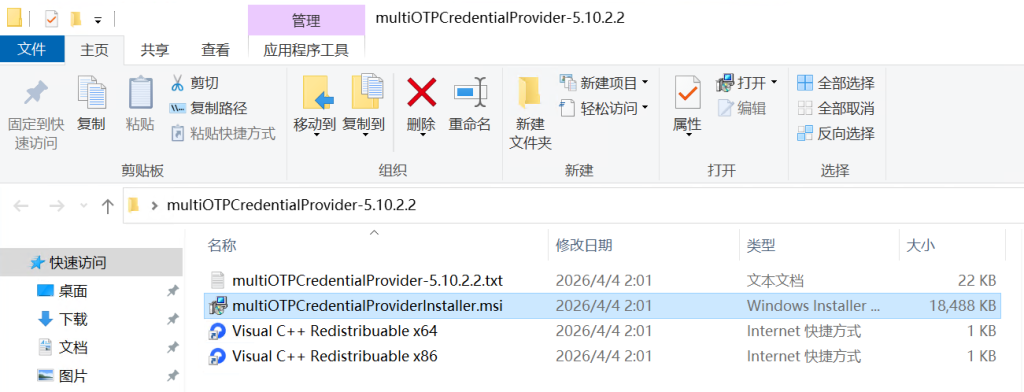

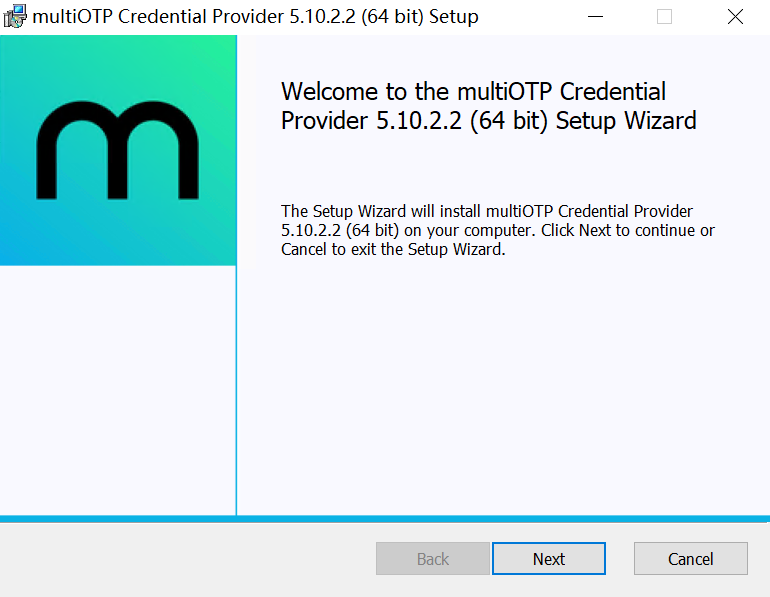

Run the installer.

Click Next.

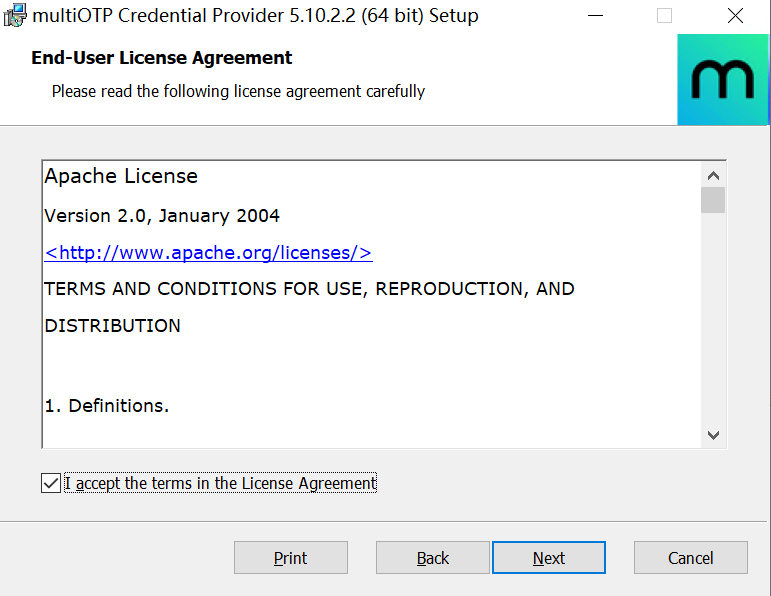

Accept the license agreement.

2.1. Login Title#

Here you can change the name displayed on the Windows login screen.

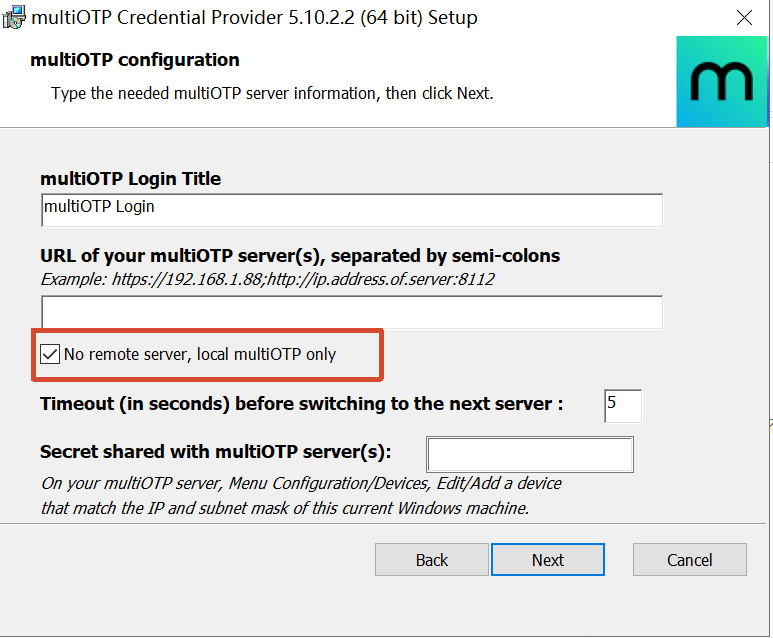

Also make sure to select:

No remote server, local multiOTP only

This selects local mode, which does not depend on remote RADIUS/LDAP or other authentication servers.

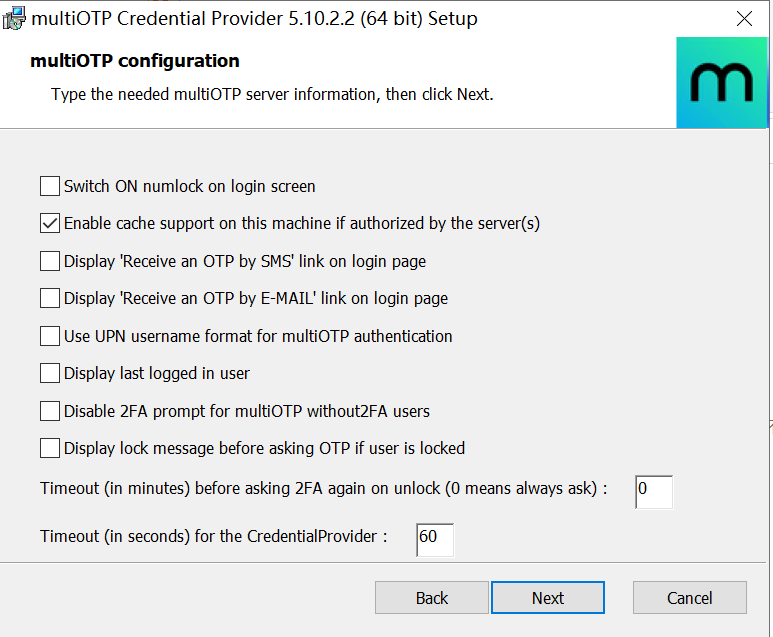

Continue the installation.

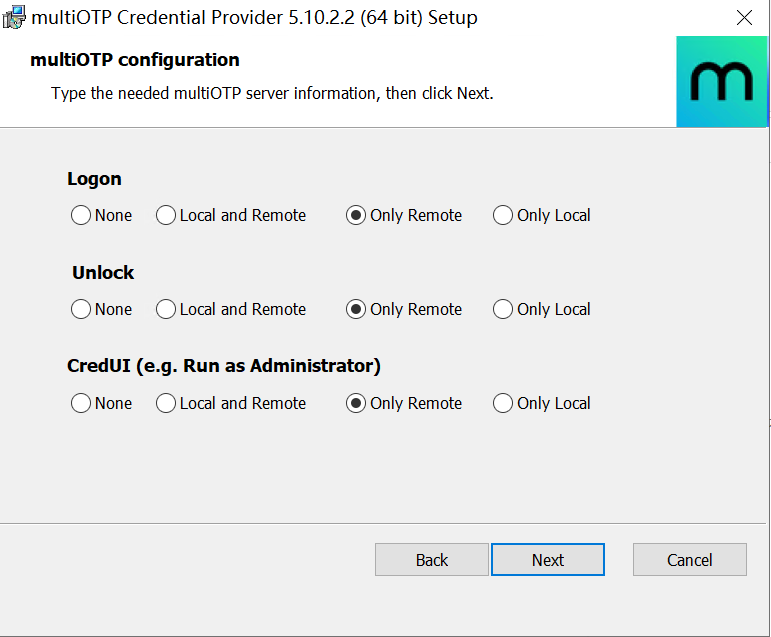

2.2. Choose the Verification Scope#

Recommended option:

Only Remote

This means:

• Local login does not require a code
• RDP login requires a code

Servers and jump hosts are generally administered through RDP, so enabling two-factor authentication only for remote logins is recommended.

This preserves a recovery path through VNC, IPMI, or physical login if the phone is lost or token configuration fails.

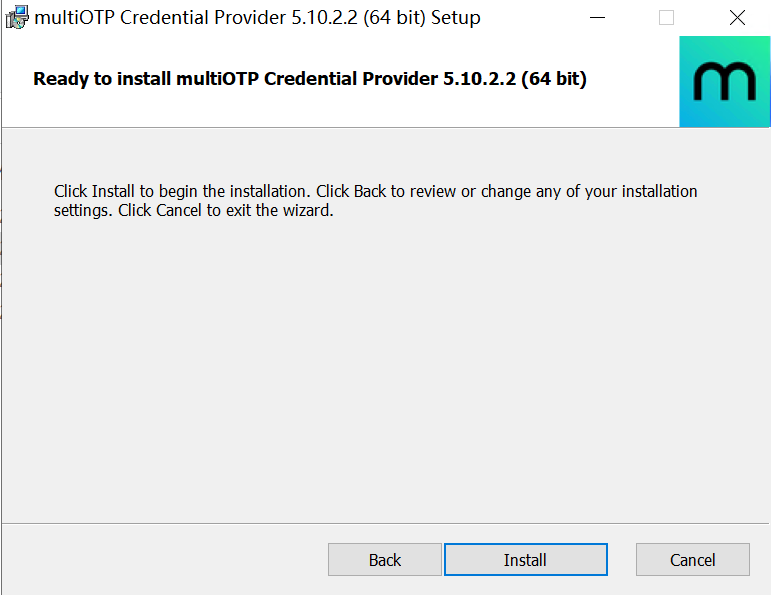

Click Install.

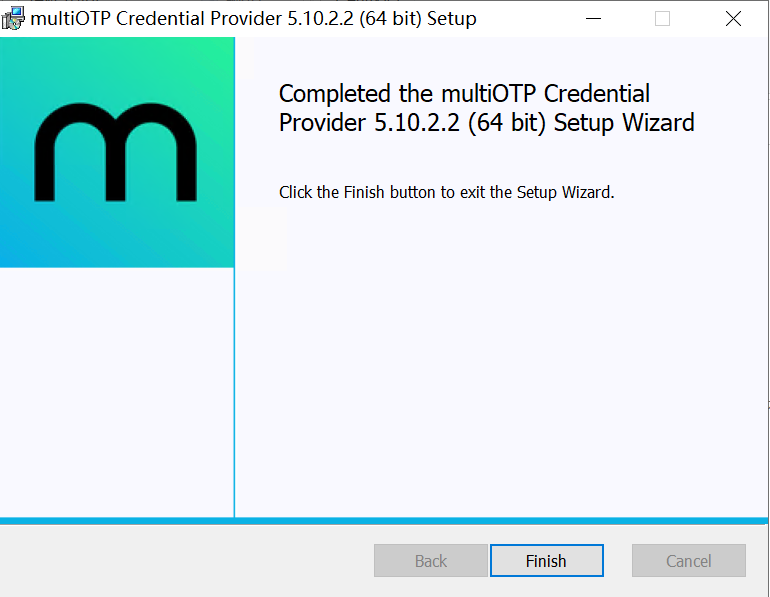

Installation is complete.

---

3. Restart the Server#

Restart the system after installation.

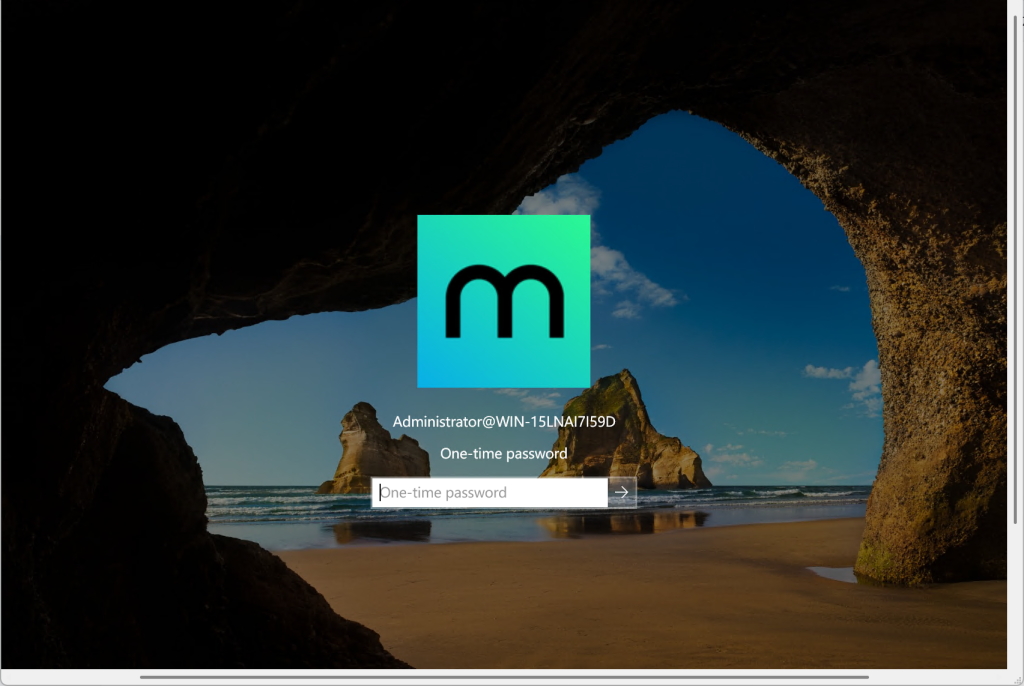

After the restart, RDP login will go directly to code verification.

Use one of the following for subsequent configuration:

• VMware Console
• VNC
• Hyper-V Console
• IPMI
• Local login

to continue.

Even with the correct password, a TOTP code will be required.

---

Configure TOTP#

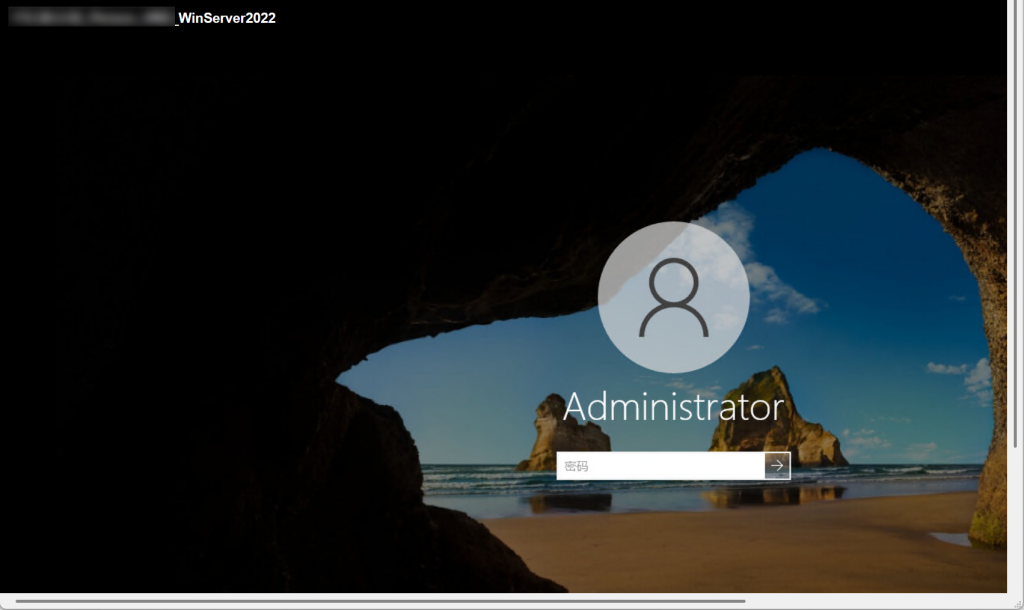

Log in to the server through VNC or a physical console.

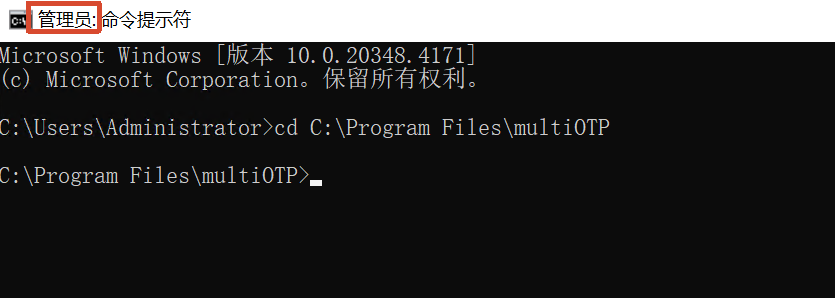

Open CMD as an administrator.

Change to the installation directory:

1
cd "C:\Program Files\multiOTP"

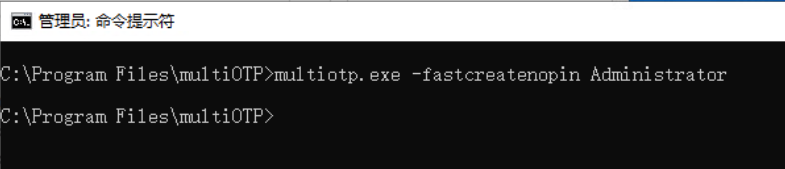

1. Create a Token#

Run:

1
multiotp.exe -fastcreatenopin Administrator

This command generates a new TOTP secret for the Administrator user.

---

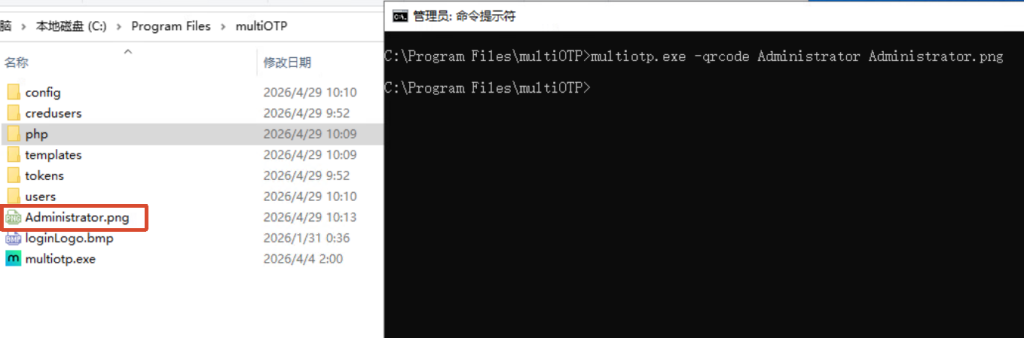

2. Generate a QR Code#

Run:

1
multiotp.exe -qrcode Administrator Administrator.png

This generates a QR-code image in the current directory.

---

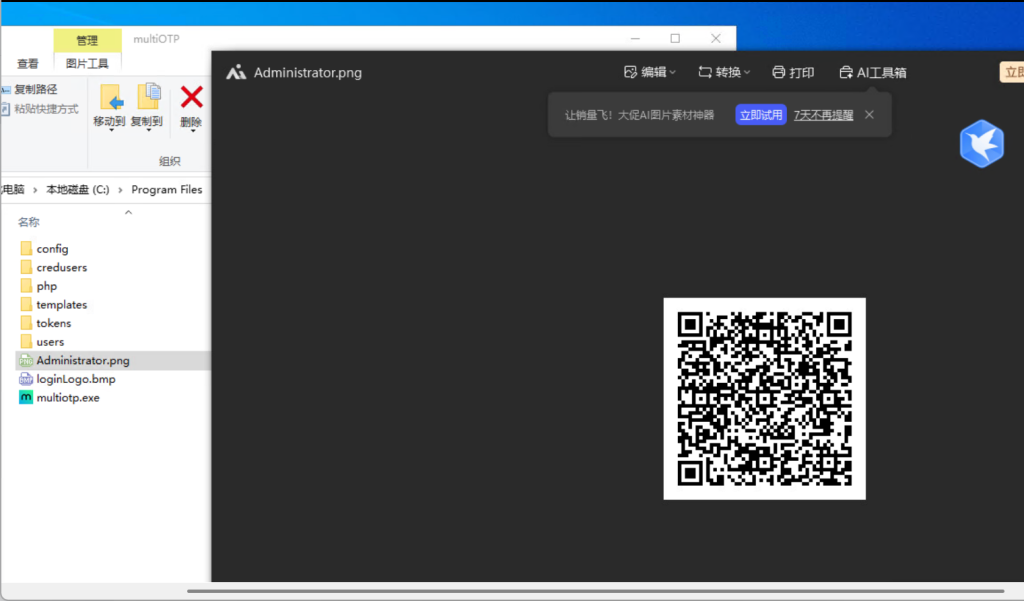

3. Scan the QR Code with Your Phone#

Open any TOTP app.

Scan the QR code to complete the binding.

---

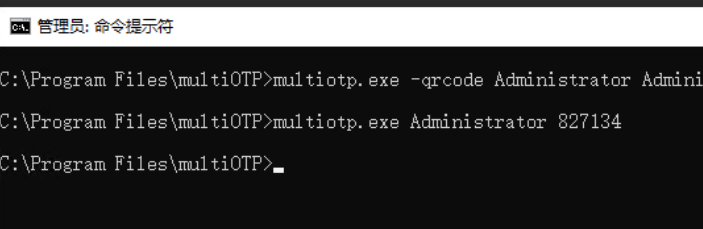

4. Verify the Code#

Enter:

1
multiotp.exe Administrator 123456

Where:

123456

replace it with the code shown on your phone.

If the command produces no output, verification succeeded.

---

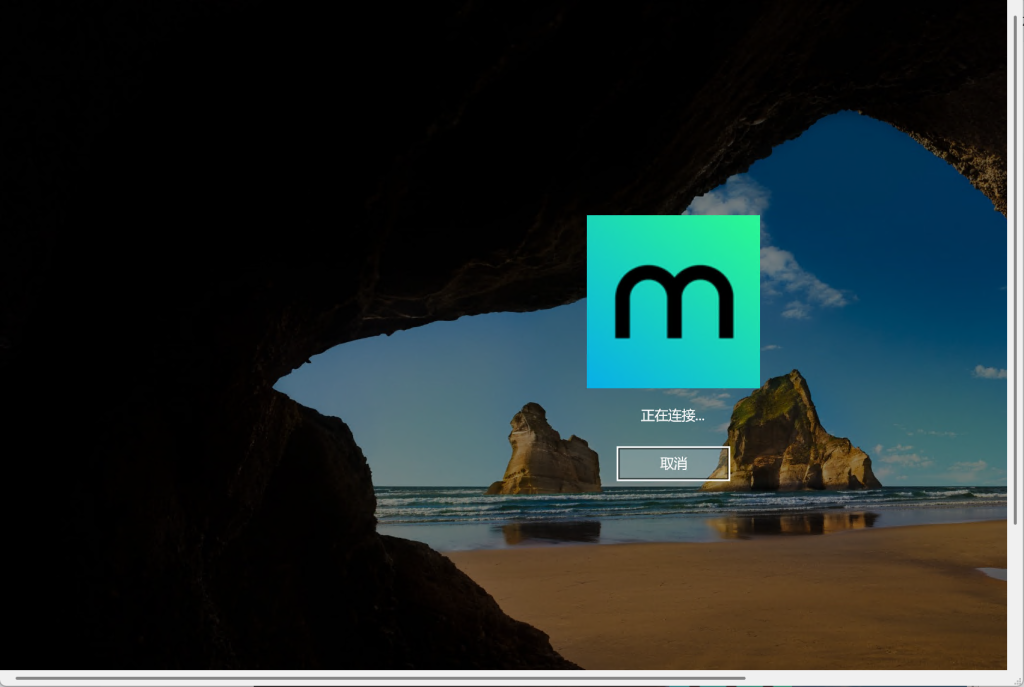

Test RDP Login#

You can now log in to the server through RDP normally.

First enter:

• Username
• Password

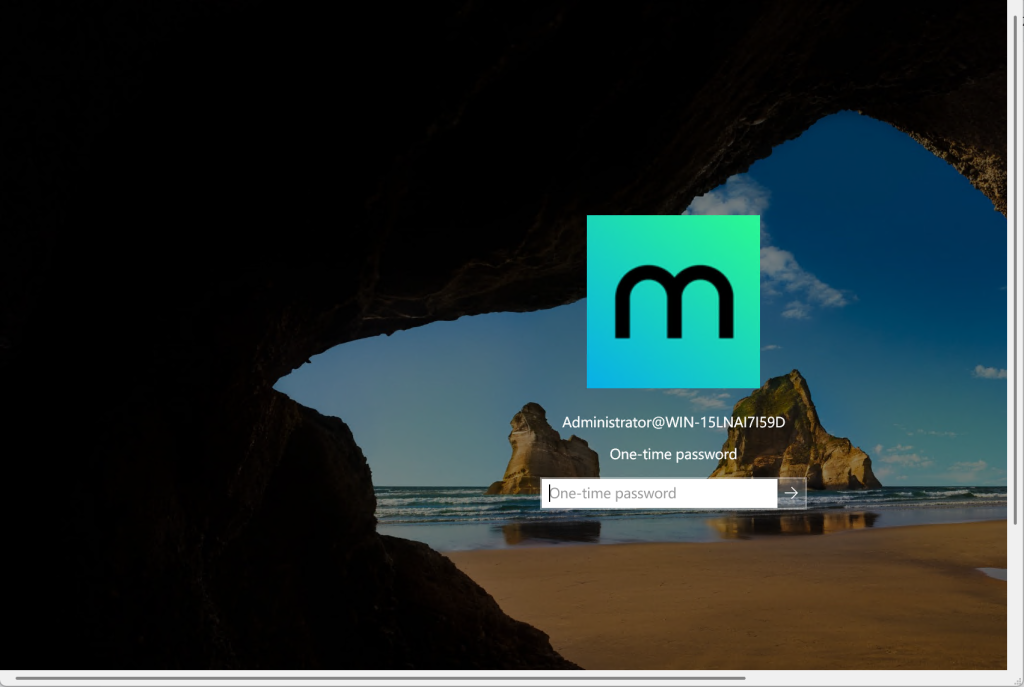

After authentication succeeds, the following prompt appears:

One-Time Password

Enter the one-time code shown on your phone.

After verification, Windows opens.

Frequently Asked Questions#

1
multiotp.exe -fastcreatenopin user1
2
multiotp.exe -fastcreatenopin user2
3
multiotp.exe -fastcreatenopin user3

Summary#

At this point, we have successfully added TOTP two-factor authentication to Windows Remote Desktop (RDP).

Compared with password-only login, an attacker who obtains the Windows password still cannot authenticate without the code on the phone, significantly improving remote-login security.

For servers with public RDP exposure, operations jump hosts, or important production systems, also use:

• A strong password policy
• Restricted RDP source IPs
• Changing the default 3389 port when appropriate
• Windows Firewall
• TOTP two-factor authentication
• Regular login-log reviews

Layered protections are more effective at reducing the risk of brute-force attacks, password exposure, and unauthorized access.
